Ifor Williams LM Series

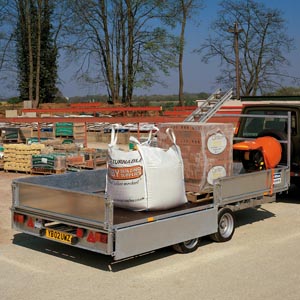

From the smallest LM85 to the largest LM187, all LM flatbed models are built around a heavy duty welded steel, galvanized chassis fitted with bolt-on tapered drawbars and the Ifor Williams axle beam and leaf sprung suspension.

Whenever there's work to be done you'll find a flatbed model to help you do it. Our flatbed trailers epitomise the flexibility of our commercial range. Purchasers from roofers to gardeners, small businesses to local authorities have all found that this range of low loading trailers can carry heavy or bulky loads with ease.

The flatbed range is offered in width options ranging from 5' to 7'6" and length options from 8' to 18'.

Standard Equipment
EEC approved auto-reverse braking system
185/60R12C radial tyres
Beam axles with heavy duty leaf springs
Full regulation lighting
Spare wheel and carrier

Optional Extras
Removable headboard
Dropsides and tailboard
Steel or aluminium loading skids
Full-width loading ramp
Prop stands
Ladder rack
Harvest raves
Winches
Aluminium treadplate floor covering

LM5 Series	LM85	LM105	LM125
Platform length	2.44m (96")	3.01m (118")	3.62m (142 1/2")
Platform width	1.52m (60")	1.68m (66")	1.68m (66")
Loading height	0.60m (23 1/2")	0.62m (24 1/2")	0.64m (25 1/4")
Wheel equipment	185/60R12C	185/60R12C	185/60R12C
Maximum gross weight	2700Kg	2700Kg	2700Kg

LM6 Series	LM106	LM126	LM146	LM166	LM186
Platform length	3.01m (118")	3.62m (142 1/2")	4.23m (166 1/2")	4.77m (187 3/4")	5.47m (215")
Platform width	1.98m (78")	1.98m (78")	1.98m (78")	1.98m (78")	1.98m (78")
Loading height	0.64m (25 1/4")	0.64m (25 1/4")	0.64m (25 1/4")	0.64m (25 1/4")	0.64m (25 1/4")
Wheel equipment	185/60R12C	185/60R12C	185/60R12C	185/60R12C	185/60R12C
Maximum gross weight	3500Kg	3500Kg	3500Kg	3500Kg	3500Kg

LM7 Series	LM147	LM167	LM187
Platform length	4.23m (166 1/2")	4.77m (187 3/4")	5.47m (215")
Platform width	2.25m (88 1/2")	2.25m (88 1/2")	2.25m (88 1/2")
Loading height	0.67m (26 1/2")	0.67m (26 1/2")	0.67m (26 1/2")
Wheel equipment	185/60R12C	185/60R12C	185/60R12C
Maximum gross weight	3500Kg	3500Kg	3500Kg

Dimensions & weights are given as a guide only. Ifor Williams Trailers and Whitehall Trailers have a policy of continuous development. We reserve the right, therefore, to alter specifications without notice.
